| Miejsce pochodzenia: | Hebei |
|---|---|
| Nazwa handlowa: | Yuntong |
| Orzecznictwo: | CE , SGS |
| Numer modelu: | Yt --f |
| Minimalne zamówienie: | 10 m2 |
| Cena: | USD 2-50 |
| Szczegóły pakowania: | Film opakowany na każdy kawałek, kilka sztuk zapakowanych w 1 karton |
| Czas dostawy: | 5-8 DNI ROBOCZYCH |
| Zasady płatności: | T/T, Western Union, PayPal |
| Możliwość Supply: | 300 m2/tydzień |
| Nazwa produktu: | Siatka kablowa X-tend | Słowo klucz: | X-TEND CABLE WEBNET Mesh Fence |
|---|---|---|---|
| Tworzywo: | Wysokiej jakości AISI316 | Lina stalowa: | 1,2 mm do 4,0 mm |
| Konstrukcje linowe: | 7 x 7, 7 x 19 | Typ siatki: | Ferruled |
| Gotowy: | Łaźnia ultradźwiękowa, czarny tlenek | Orientacja siatki: | Poziome, pionowe |
| Podkreślić: | Flexible SS304 cable mesh,X Tend aviary protective net,316 stainless steel zoo net |
||

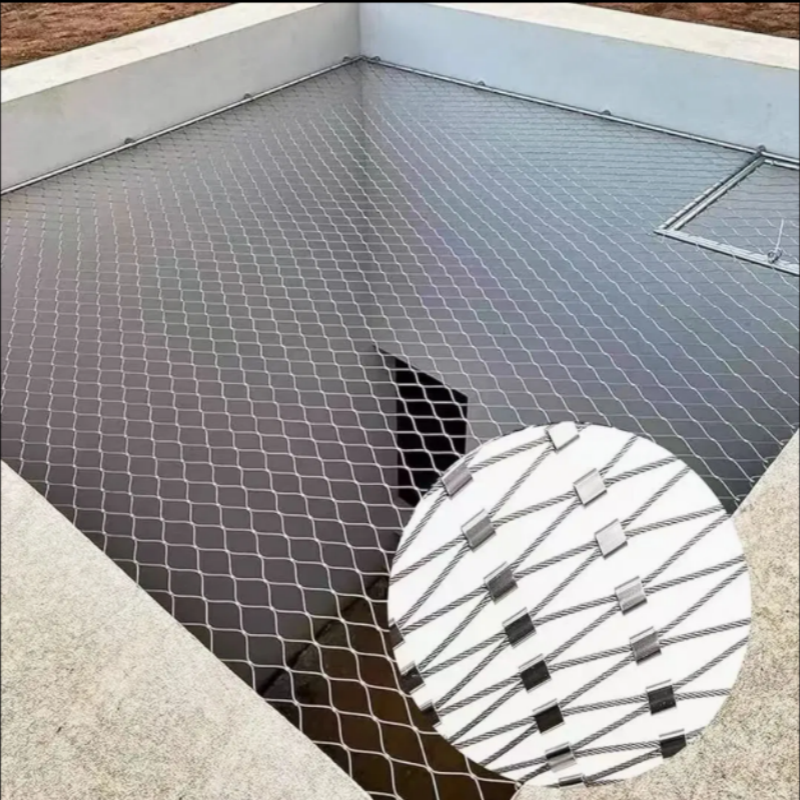

Flexible SS304 316 X Tend Cable Mesh For Zoo Aviary Protective Net
X-Tend Cable Mesh Fence is custom manufactured to in widths and lengths to suit your balustrade, railing or architectural application. Diagonal and irregular shapes can also be supplied.
Mesh sizes range from 25mm x 25mm to 250mm x 250mm with stainless cable diameters from 1.2mm to 3.2mm.
Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required aesthetics.

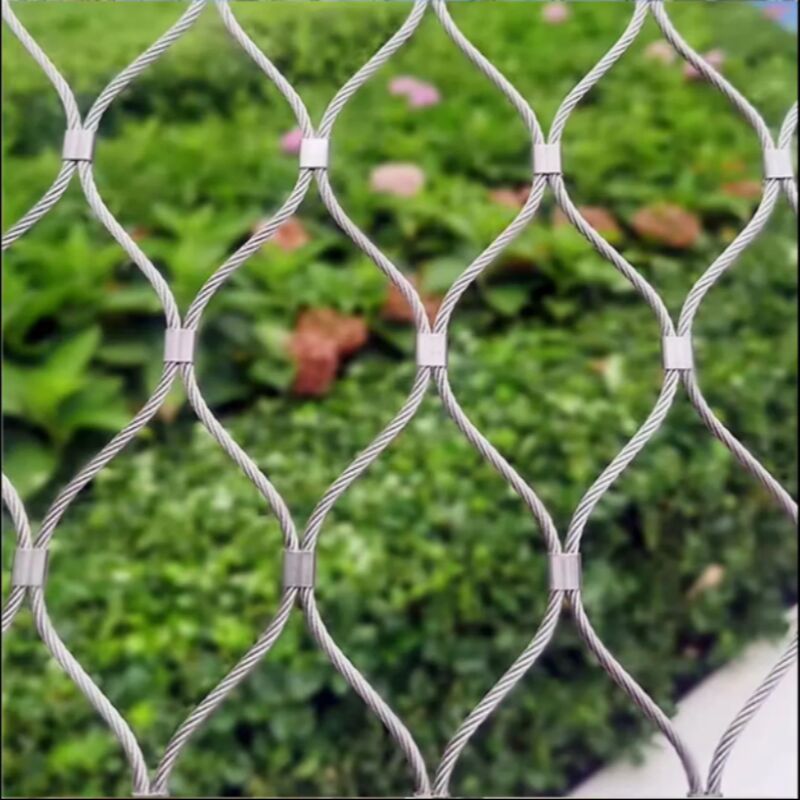

Finished diamond mesh style when it is stretched at 60 degree angle ;
X-Tend Cable Mesh Specifications Sheet :
|
Hole Size (Opening) |
1.2MM(3/64) (7 x 7 ) |
1.6MM(1/16) (7 x 7 ) |
2.0MM(5/64) (7 x 7 ) |
2.4MM(3/32) (7 x 7 ) |
3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | YT-1235 | ||||
| 25 x 42mm | YT-1225 | YT-1625 | |||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
RFQ Of X-tend Cable Mesh :
1. Advantage of X-tend Cable Wire Mesh
Unique design. 3D-structure, Flexible, Light weight, High open area % . Corrosion resistant, Maintenaance free. 10 years rust guaranteed.
2. 304 or 316 stainless steel?
- Generally the 304 stainless steel is cheaper than 316 stainless steel, to flexible wire rope mesh, the main cost is process cost, so the cost of mesh between 304 and 316 almost same. we suggest to choose 316 stainless steel.
3. What is the different with cable and opening ?
- The heavier cable or smaller opening, the cost more expensive.
4. Is it safety ?
- Full mesh meet test under EN1263.1.2014
5. How to install the mesh !
- Full of our piece is manufactured with special edge design. install by yourself easily.
Advantage :
1. The netting is clipped to the cable,
2. The mesh size and diameter can be modified
3. It can be made to customer orders and statically tested – especially suitable for facades
4. High strength, strong toughness, free-angles curving and fold, easy for transportation and Installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7. This product can bear the heavy snow and the gale very much.
8. without toxic material, safety, environmental protection.
9. Lightweight, high-strength, never rust, softness,
10. fatigue resistance, impact resistance, breaking force, the overall structure of the rugged life of more than 30 years;
![]()
