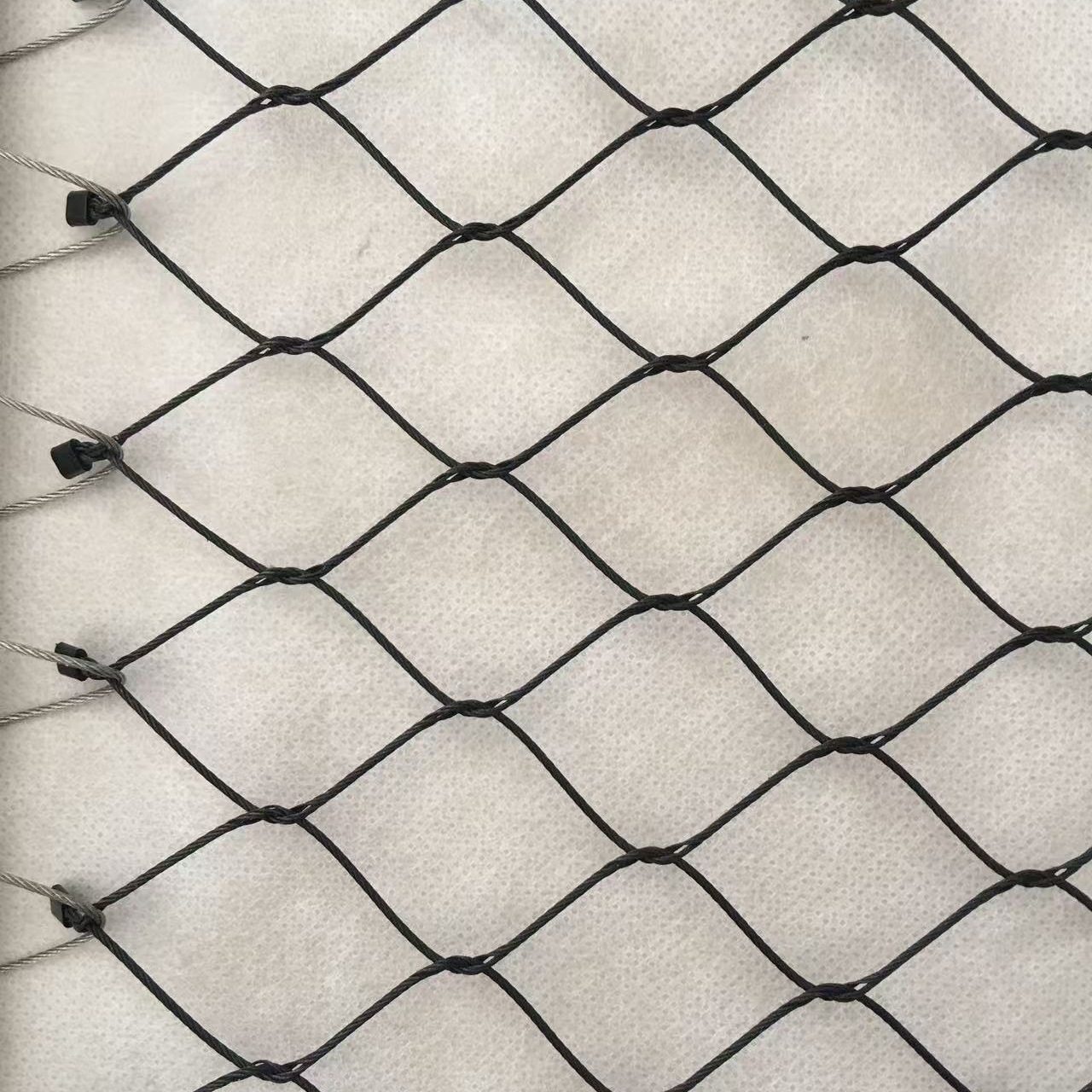

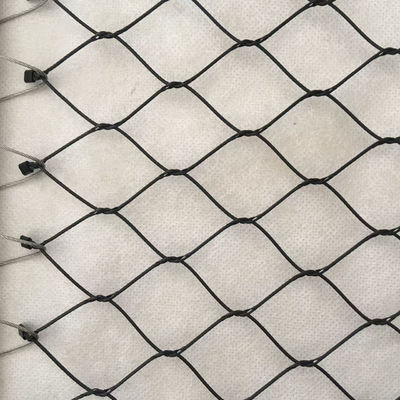

Name: Ferrule Stainless Steel Black Oxide Wire Rope Mesh Railing Net
Brand: Anping Yuntong Metal Wire Mesh Co.,Ltd
SKU: YT-B-O
Price: 21.00 USD
Availability: InStock

Ferrule Stainless Steel Black Oxide Wire Rope Mesh Railing Net

Podstawowe informacje

Place of Origin:	Hebei
Nazwa handlowa:	Yuntong
Orzecznictwo:	CE , SGS
Model Number:	YT-B-O

Minimum Order Quantity:	10 Sqm
Packaging Details:	Package film for each piece,Several pieces packed in 1 carton
Delivery Time:	5-8 Work Days
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	300Sqm/Week

Skontaktuj się teraz

Name:

Ferrule Stainless Steel Black Oxide Wire Rope Mesh Railing Net

Mesh Type:

Ferruled and Knotted

Wire Rope:

1.2 mm to 4.0 mm

Rope Constructions:

7 x 7 , 7 x 19

Finished:

Black Oxide

Material:

High Grade AISI316

Mesh Angle:

60°IN RHOMBUS

Width:

Custom-made

Length:

Custom-made

Podkreślić:

black oxide wire rope mesh

stainless steel ferrule wire rope

wire rope railing net

Ferrule Stainless Steel Black Oxide Wire Rope Mesh Railing Net

Product Specifications

Attribute	Value
Name	Ferrule Stainless Steel Black Oxide Wire Rope Mesh Railing Net
Mesh Type	Ferruled and Knotted
Wire Rope	1.2 mm to 4.0 mm
Rope Constructions	7 x 7, 7 x 19
Finished	Black Oxide
Material	High Grade AISI316
Mesh Angle	60° IN RHOMBUS
Width	Custom-made
Length	Custom-made

Black Oxide Mesh System Specification

Hole Size	1.2MM(3/64)	1.6MM(1/16)	2.0MM(5/64)	2.4MM(3/32)	3.2MM(1/8)
20 x 35mm	YT-1235
25 x 42mm	YT-1225	YT-1625
30 x 52mm	YT-1230	YT-1630	YT-2030
35 x 60mm	YT-1235	YT-1635	YT-2035
38 x 66mm	YT-1238	YT-1638	YT-2038	YT-2438
40 x 69mm	YT-1240	YT-1640	YT-2040	YT-2440	YT-3040
50 x 86mm	YT-1250	YT-1650	YT-2050	YT-2450	YT-3050
60 x 104mm	YT-1260	YT-1660	YT-2060	YT-2460	YT-3060
70 x 120mm	YT-1270	YT-1670	YT-2070	YT-2470	YT-3070
76 x 131mm	YT-1276	YT-1676	YT-2076	YT-2476	YT-3076
80 x 138mm	YT-1280	YT-1680	YT-2080	YT-2480	YT-3080
90 x 154mm	YT-1290	YT-1690	YT-2090	YT-2490	YT-3090
100 x 173mm	YT-12100	YT-16100	YT-20100	YT-24100	YT-30100
120 x 206mm	YT-12120	YT-16120	YT-20120	YT-24120	YT-30120

Black Oxide Wire Rope Mesh Details

Mesh Type: Ferruled or Knotted
Mesh Angle: 60 degree
Mesh Orientation: Horizontal or Vertical
Panel Measurement: Custom-made, Diagonal and irregular shapes can also be supplied
Finished: Black Oxide
Application: Balustrade infill, Facade Cladding, Animal Enclosure, Aviary Netting

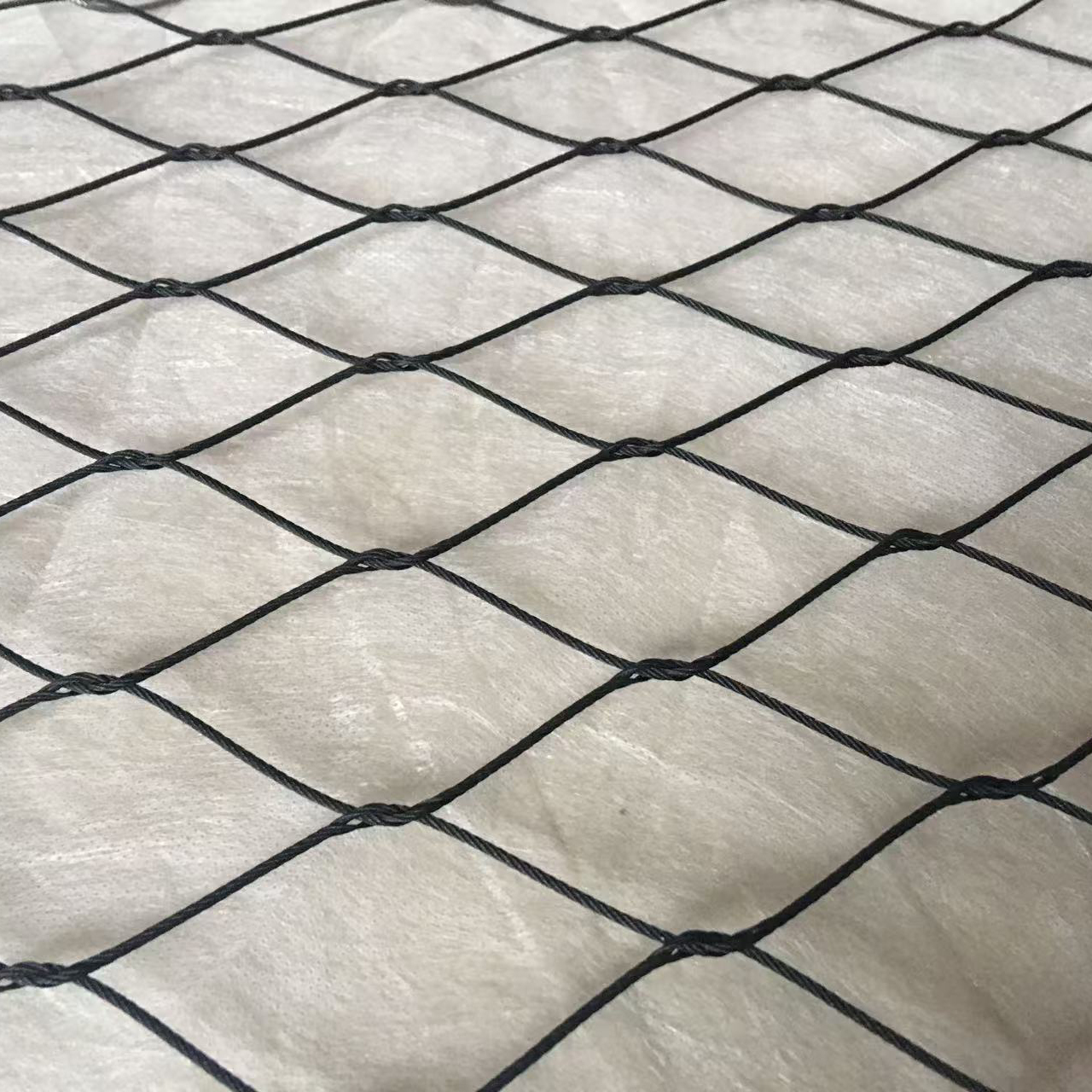

Finished diamond mesh style when it is stretched at 60 degree angle.

Mesh sizes range from 20mm to 120mm or bigger with stainless cable diameters from 1.2mm to 4.0 mm.
