Product Description

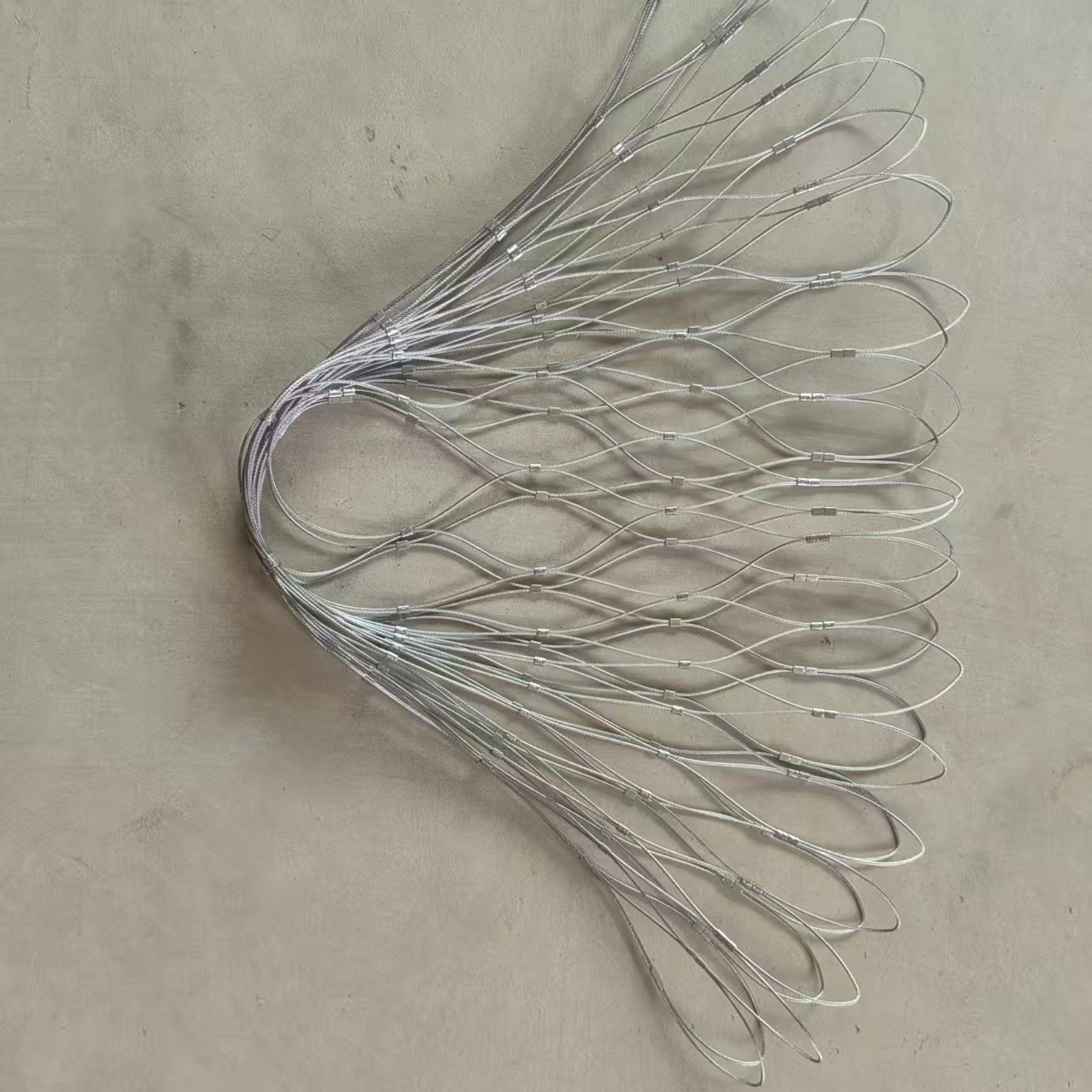

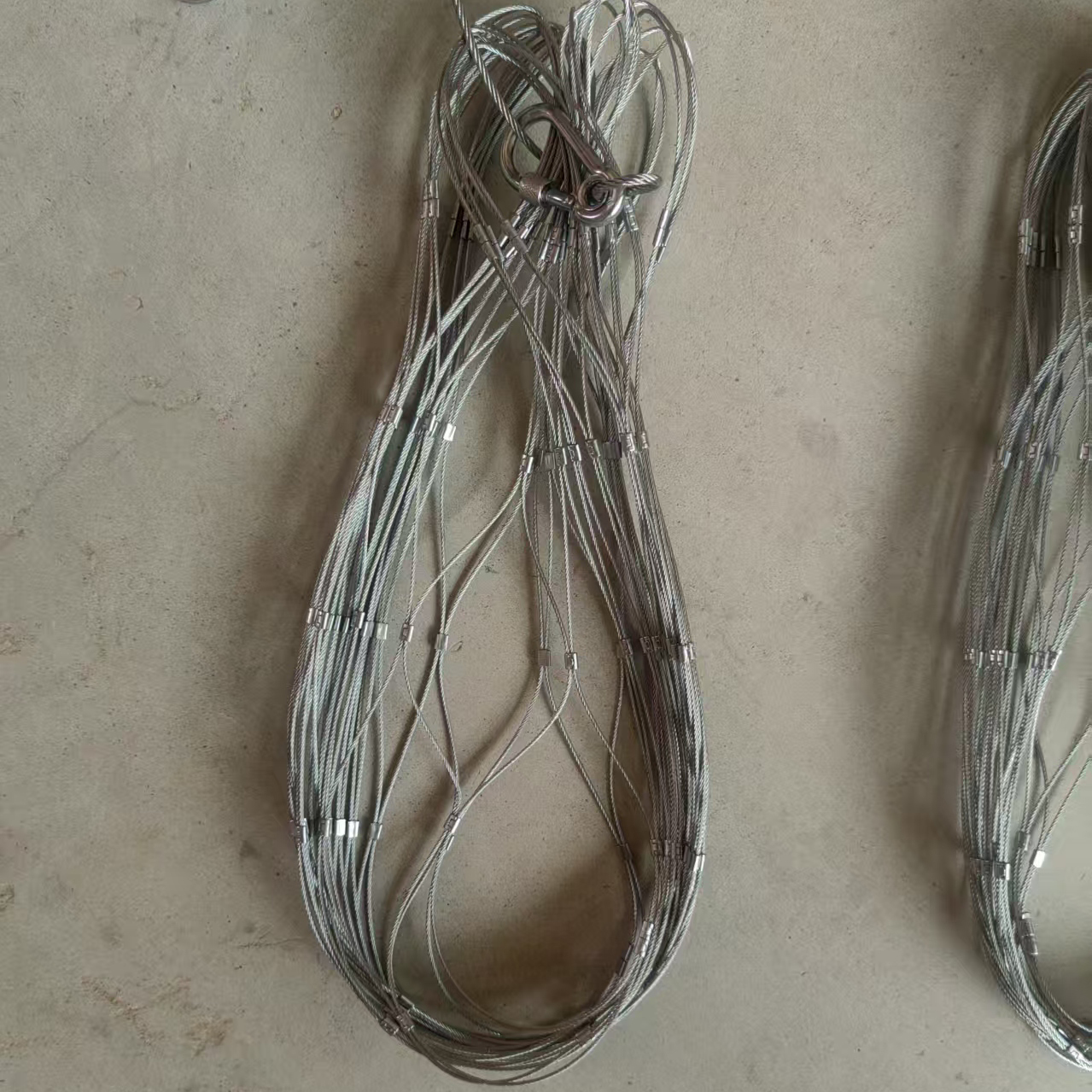

Our stainless steel anti-theft security wire mesh provides reliable protection for your luggage, supplies, valuables and public goods from theft while maintaining durability and security.
Specifications
| Mesh Aperture |
Wire diameter |
| 20 x 35 mm |
YT1220 |
| 25.4 x 44 mm |
YT1225, YT1525 |
| 35 x 61 mm |
YT1235, YT1535, YT2035 |
| 38 x 65.8 mm |
YT1235, YT1538, YT2038, YT3038 |
| 51 x 88.3 mm |
YT1251, YT1551, YT2051, YT3051, YT4051 |
| 60 x 105 mm |
YT1260, YT1560, YT2060, YT3060, YT4060 |
| 76 x 131.6 mm |
YT1276, YT1576, YT2076, YT3076, YT4076 |
| 90 x 156 mm |
YT1290, YT1576, YT2090, YT3090, YT4090 |
| 102 x 176.7 mm |
YT20100, YT15100, YT20100, YT30100, YT40100 |
| 120 x 210 mm |
YT12120, YT15120, YT20120, YT30120, YT40120 |
| 160 x 280 mm |
YT12160, YT15160, YT20160, YT30160, YT40160 |
| 180 x 315 mm |
YT12180, YT15180, YT20180, YT30180, YT40180 |
| 200 x 350 mm |
YT12200, YT15200, YT20200, YT30200, YT40200 |
| 250 x 450 mm |
YT12250, YT15250, YT20250, YT30250, YT40250 |
| 300 x 525 mm |
YT12300, YT15300, YT20300, YT30300, YT40300 |
Technical Details
- Material: SS304, SS316
- Mesh type: Woven or Ferrule mesh
- Cable structures: 7x7, 7x19
- Wire diameter: 1.2mm to 6.0mm
- Mesh aperture: 25*25mm to 300*300mm
- Height: 0.5-30 meters (customizable)
- Length: 0.5-30 meters (customizable)
- Shape: Irregular, triangle, parallelogram, trapezoid, etc.
Cable Structures and Mesh Types
1. Knotted Mesh: A plain weave where each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
2. Ferruled Mesh: Shares the same physical properties with knotted mesh, but the stainless wire ropes are combined by ferrules made of the same grade stainless steel.
Applications
Widely used in:
- Fencing and garden fences
- Aviary mesh and bird netting
- Animal enclosures and zoo mesh
- Agriculture applications
- Residential fencing
- Stair railings and balustrade infill
- Architectural surface plant climbing nets
Advantages
- The netting is clipped to the cable
- Customizable mesh size and diameter
- Made to customer orders with static testing capability
- High strength and strong toughness
- Free-angle curving and folding for easy transportation and installation
- Anti-corrosive and rust-resistant for repeated use
- Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
- Withstands heavy snow and strong winds
- Non-toxic, safe, and environmentally friendly
Packing and Delivery
Packing: Paper carton, wooden case
Delivery: FedEx, DHL, UPS, TNT EMS, by air, Door-to-Door or by sea.
About Anping Yuntong Metal Wire Mesh Co., Ltd.
We are an exporter and manufacturer of series wire mesh and industrial wire, located in the native land of wire mesh in China. Our main products include various materials of fencing wire mesh, zoo mesh, rope mesh, aviary mesh, metal curtain, and aluminum decorative mesh.
Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and Southeast Asian countries. We have established long-term relationships with suppliers and earned trust from users worldwide.
Yuntong aims to become a first-class company integrating scientific research, production and management. Our goods are high quality at favorable prices, produced according to ISO9001 Quality Standards. 90% of our products are for export, selling well in the USA, Germany, Japan, Canada, South Korea, and other countries.
